| 3 Piece Ball Valves |
|
|
 |
|
| BVB-131T/B/S -3 Piece Ball Valve |
|
|
| SPECIFICATIONS |
| Available Material |
CF8M/WCB |
| Working Pressure |
1/4"-2" 1000 PSI 2-1/2"-4" 800 PSI |
| Ball Bore |
Full |
| End Connection |
Threaded / Socket Weld / Butt Weld |
| Size Range |
1/4" to 4 " |
| ISO Mount |
Not Direct |
|
| ADDITIONAL APPLICATION |
| Operation |
Handle |
| Options |
SEAT:RTFE/PTFE+50%SS/TFM1600/TFM4215 |
|
|
|

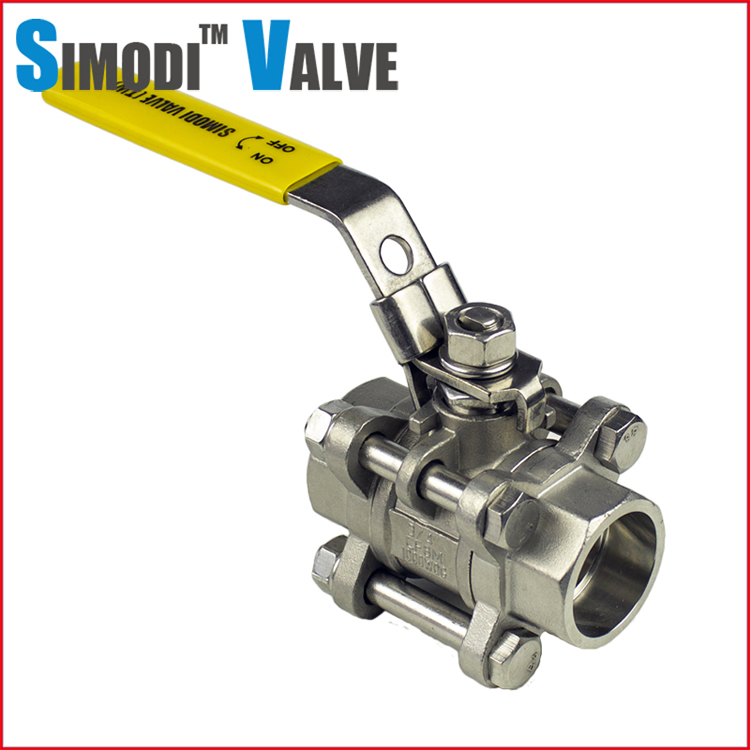

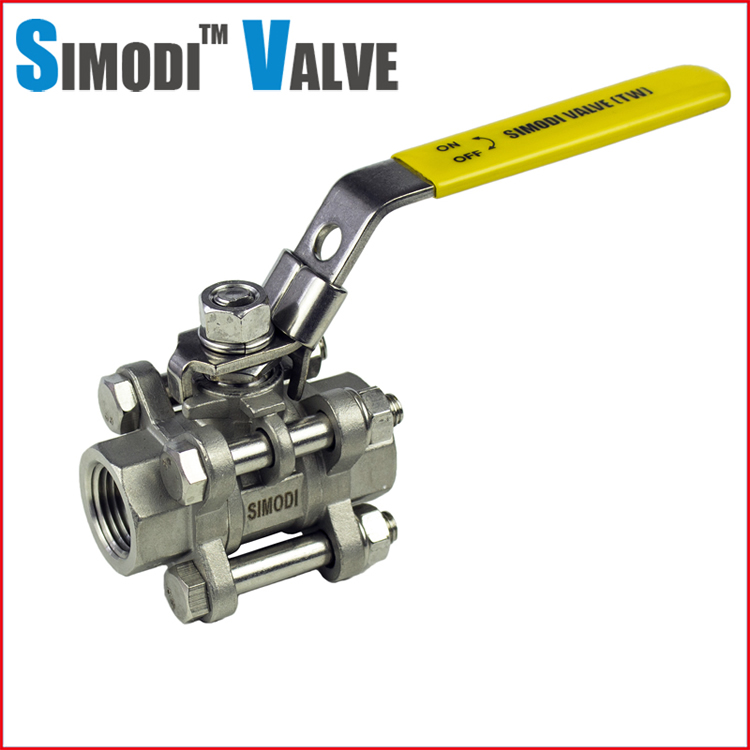

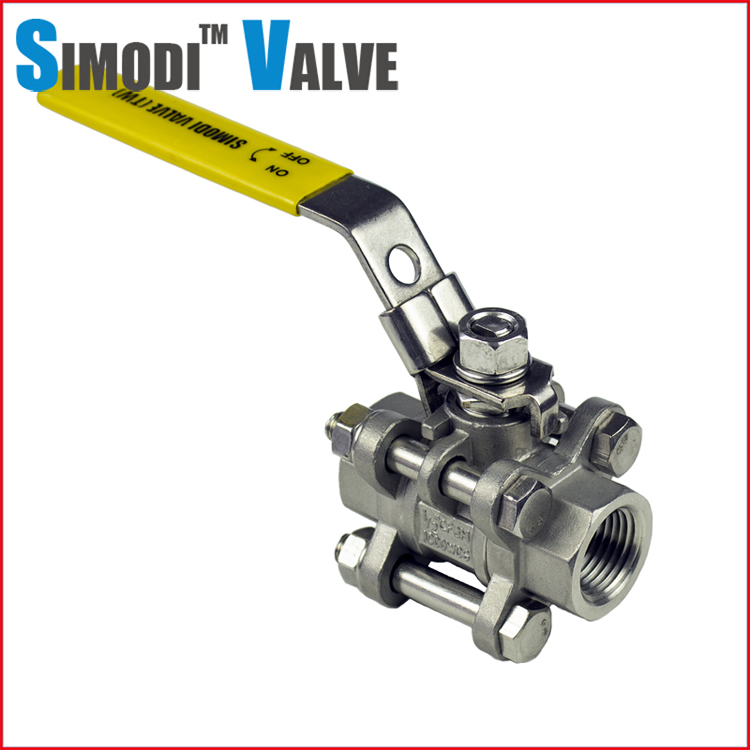

BVB-131T/B/S Three-piece full-bore stainless steel manual ball valve
SPECIFICATIONS
*Working Pressure: 1/4”~2”1000PSI WOG 2-1/2"~4" 800PSI
*
Temperature Range: -15℃～150℃(PTFE)
*Blow-Out-Proof Stem Design
*Investment Casting
*Solution Treatment
*
End Types: Female Threaded、Butt Welded、Socket Welded
|
